Vacuum Gauge
For vehicles older than 1994 that do not have an OBDII (code reader) port, a vacuum gauge can be correlated to measure fuel economy. They don't cost very much either.
As I learn more techniques and tips, my gas mileage just keeps getting better and better. Achieving such dramatic efficiencies in a normal internal combustion engine does not require doing anything drastic, dangerous or illegal.
I was able to increase my performance an additional 22% (above the 41% I was already achieving) for a total of a 63% increase. Instant feedback is the key to such dramatic fuel savings.
One such tool is the vacuum gauge. It will work on any vehicle, costs you less than $30 yet it will save you hundreds at the pump.
The Vacuum Gauge that I installed in my 1992 Honda Accord displays a vacuum pressure ranging from 0 to 30 Hg (inches of Mercury).

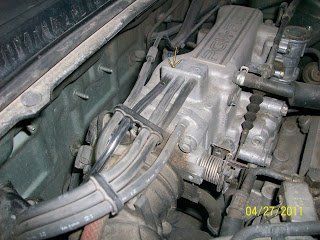

The gauge's vacuum hose connects to the extra port on my intake manifold. How convenient that there was an extra port. No cutting or splicing involved.
Vacuum pressure at the intake manifold is loosely correlated to fuel efficiency. The harder you push on the gas pedal, the lower the vacuum pressure and the more gas your vehicle will consume. For my car, the gauge displays 0 Hg at full throttle and as high as 24 Hg when it is coasting in gear. My car gets much, much higher gas mileage when I drive in a manner that keeps the vacuum pressure as high as possible. Typically this is in the 12-18 Hg range.
Cruising on the freeway I can maintain a vacuum pressure of 15 Hg. The vacuum gauge also doubles as an inclinometer. Driving up a hill (like an overpass) while maintaining a constant speed, the vacuum gauge will drop down toward 10 Hg. Driving down the other side, the gauge jumps up toward 20 Hg.
By driving so that the vacuum gauge remains at a constant vacuum pressure, your speed may fluctuate, your acceleration will be smaller but your fuel efficiency will be much, much higher.
When a vehicle is driven at a low engine RPM, fuel economy goes way up. But pushing too hard on the gas pedal while in an upper gear will bog the engine down, potentially negating any fuel savings (automatic transmissions don't suffer from this but they don't get as good of fuel economy either).
Fortunately, the vacuum gauge will indicate if you are bogging the engine or not. If you are cruising along a 30 mph street in 4th or 5th gear, with very little throttle, the vacuum gauge will still display a nominal value. But even an unnoticeable increase in throttle position will bog the engine down and kill the vacuum pressure at the intake manifold, increasing fuel consumption. Having this feedback is key to driving at the lowest possible RPM while still preventing bogging and preserving fuel efficiency.
